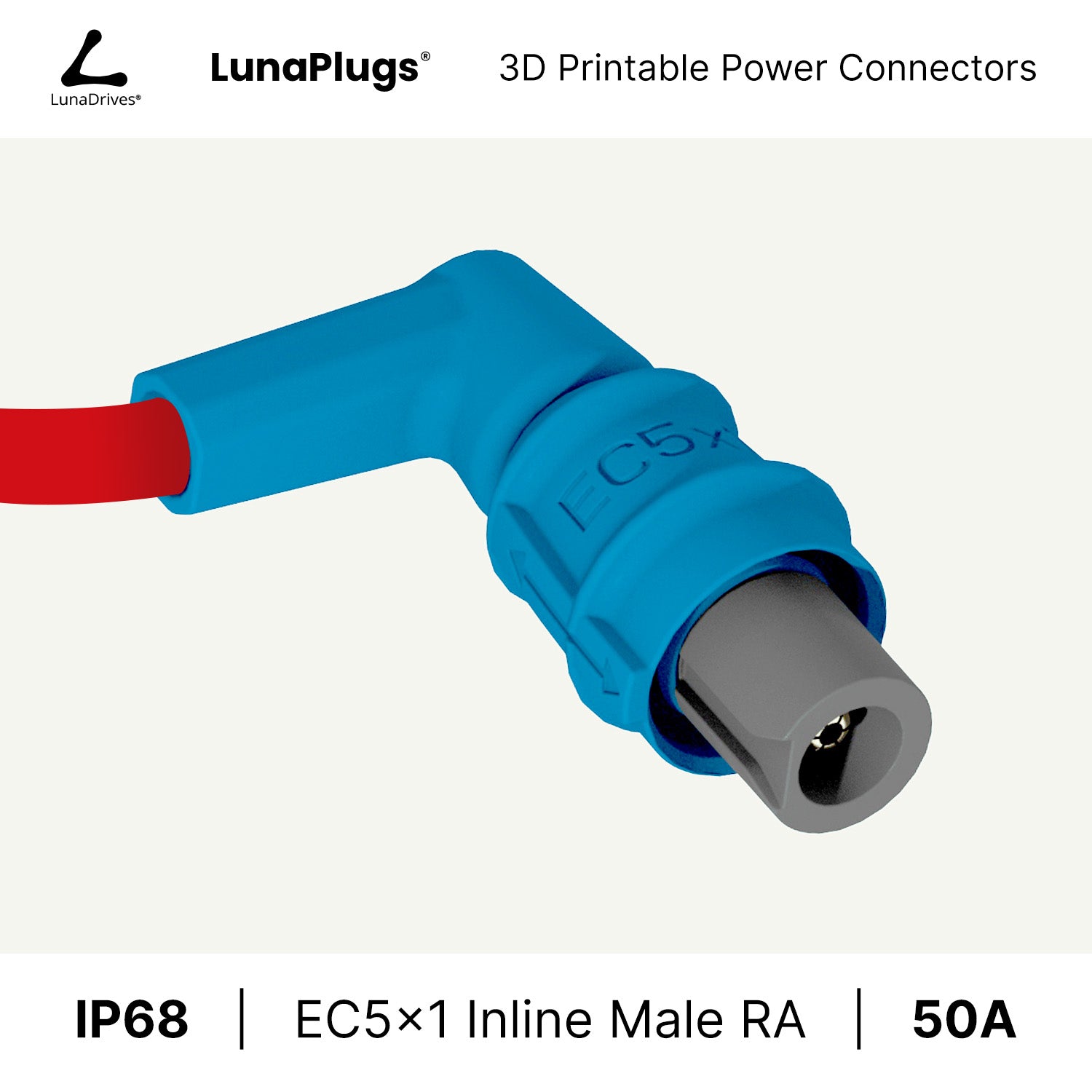

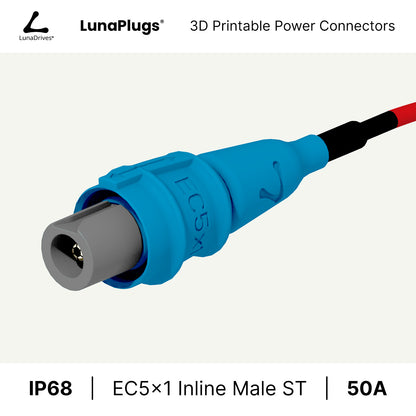

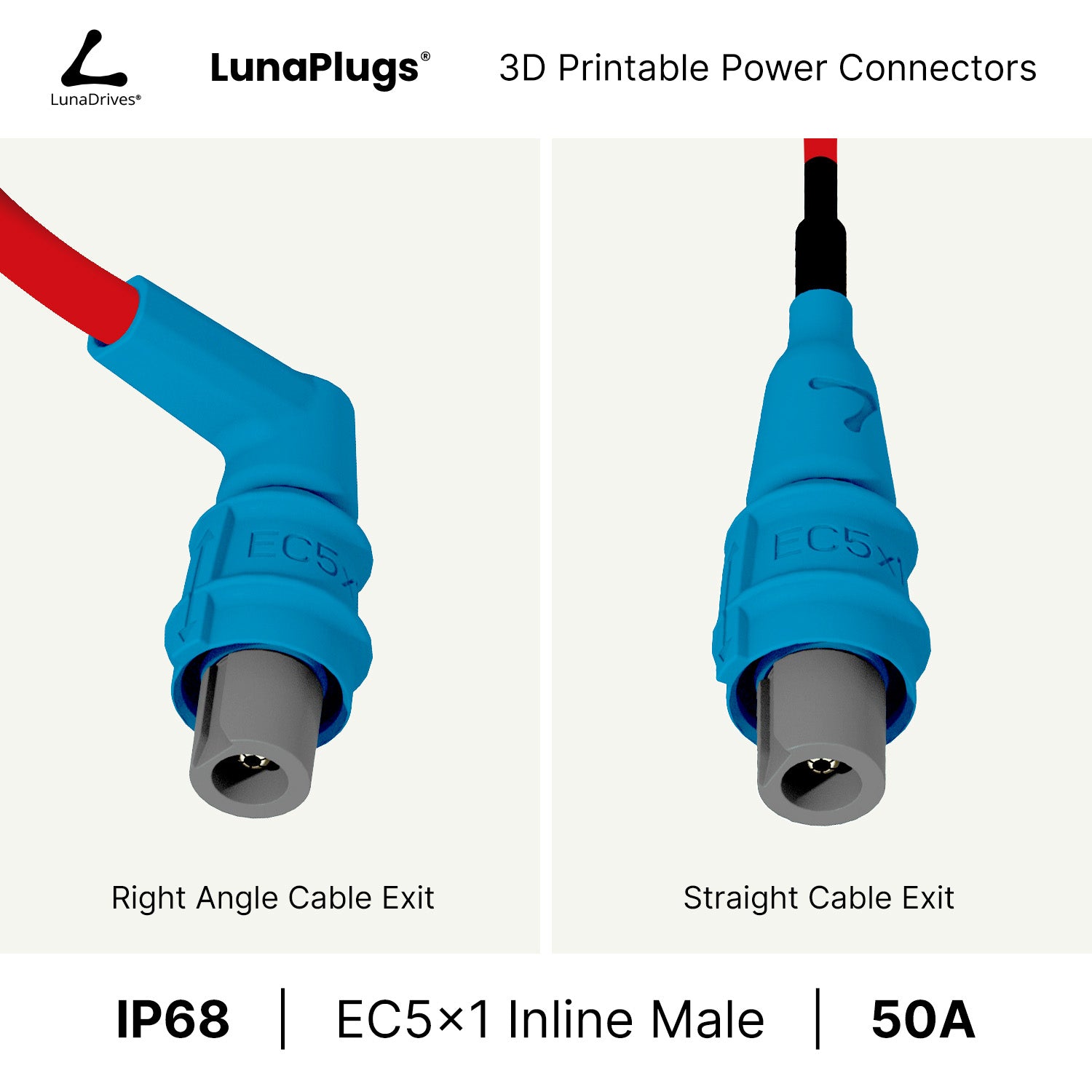

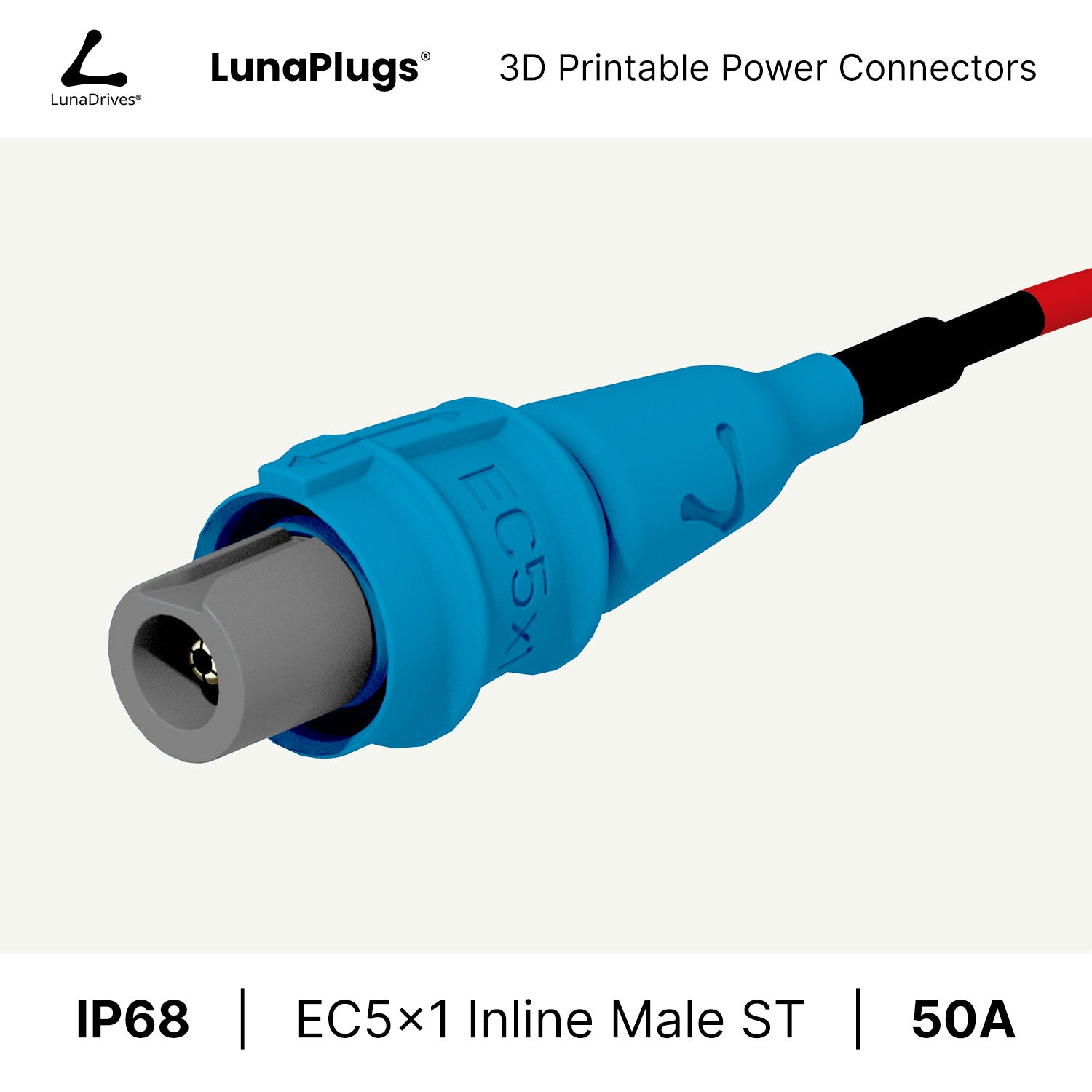

EC5x1 Inline Male – 50A, IP68 Connector

EC5x1 Inline Male – 50A, IP68 Connector

High-current, watertight, 3D-printable EC5x1 inline male connector. Reliable power in tight looms; fast to assemble and service.

Looking for a full set or commercial license

£2.99
£2.99
Sale Sold out
VAT included.
  • Your files are delivered immediately after checkout. No waiting. No shipping.
  • Your receipt specifies which LunaDrives® license applies (Personal or Commercial). The license terms are publicly available, but only valid for you with a matching receipt.
  • LunaPlugs® are designed for EC-series contacts, which are widely available worldwide. Always check our Materials Guide for recommended suppliers and compatible pre-soldered assemblies.

Specifications

  • Current Capacity*:
    EC550 Amps per channel/contact (when used with 10awg wire).
    EC8100 Amps per channel/contact (when used with 6awg wire).
    *Product Title Current Ratings are indicative only of net (all contacts of single polarity)-continuous-capacity of the connector when used at 24V & 21C ambient temperature. We currently have data to suggest loading upto 200A MAX for short bursts of <10s maybe feasible for select use-cases, at 24V & 21C ambient temperatures. For more information please see the available contact data pdf file.
  • Voltage Capacity:

    Whilst the providers of contacts rate them as being capable of 500V, we have only tested them at 24V (as of 20/08/2024).

    Assembly/Disassembly Cycles: Connector performance will drop over number of assembly/disassembly cycles, this is exacerbated by connecting and disconnecting under load and/or without spark protection. We anticipate ~25% drop in capacity over 500x assembly/disassembly cycles but haven’t yet tested for this.

  • Assembly Drawing (PDF) and CAD SpaceClaim (STP) Files:
    Free downloads.
    - Assembly drawings (PDF)
    - Spaceclaim CAD file (STP)

  • Associated Documents:
    Free downloads.

  • Legal
    See our Legal page for the latest:
    - LunaDrives Terms of Use
    - LunaDrives Personal Use License
    - LunaDrives Commercial Use License

Disclaimers

Whilst every effort has been made to:

  • Make printable on low-cost domestic printers
  • Verify performance
  • Improve performance and usability over previously available contact bodies

LunaPlugs® are:

Whilst we’ve had great experience of quality and consistency of the approved contacts with LunaPlugs® – without failure (as of 20/08/2024) – we do not maintain batch traceability or have quality control over their supply. They are not certified or recommended for use in safety critical applications. You, the purchaser, take full responsibility for any liabilities that may arise in connection to your manufacture and use of these connectors.

View full details

What's Included?

A person looking out over the wilderness

Included

Personal Use License

Permitting unlimited personal use of
purchased design files – subject to Terms of Use.

View Terms of use
Example screenshots of included design files

Included

Design files

• Connector Body Components (see pictures)
• With 2x Glanding arrangements provided for each selected contact type:
• Assembly tools and fixtures
•Gland BLANK .STL for seal testing
•Gland with PILOT hole(s) .STP file for
modification and use with non-standard wire diameters
•Chitubox SLA files for M1 components with supports, ready to print.

What's not included?

Not included

Materials, components and tools

For best results, use LunaPlugs approved materials, components and tooling.

Read the guide

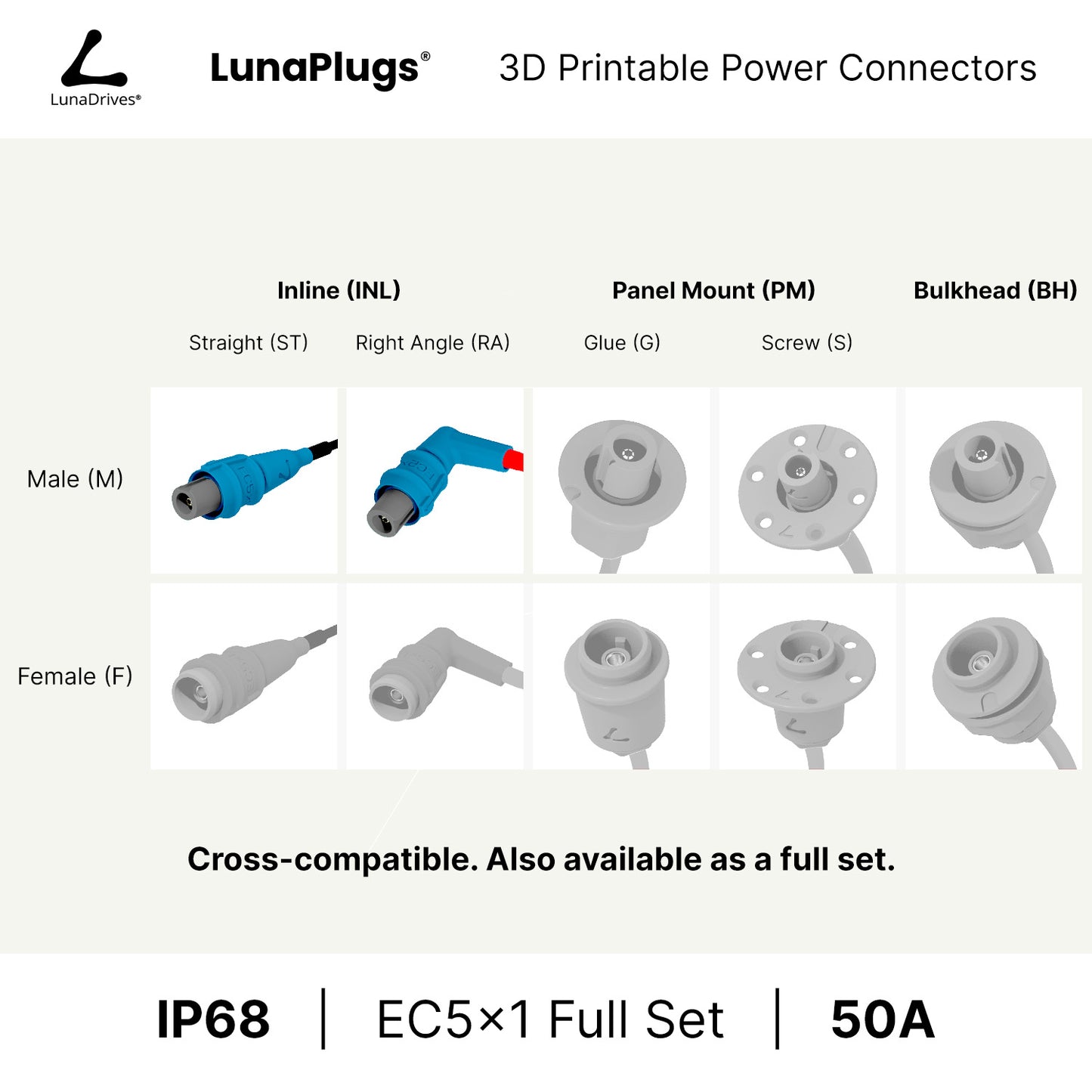

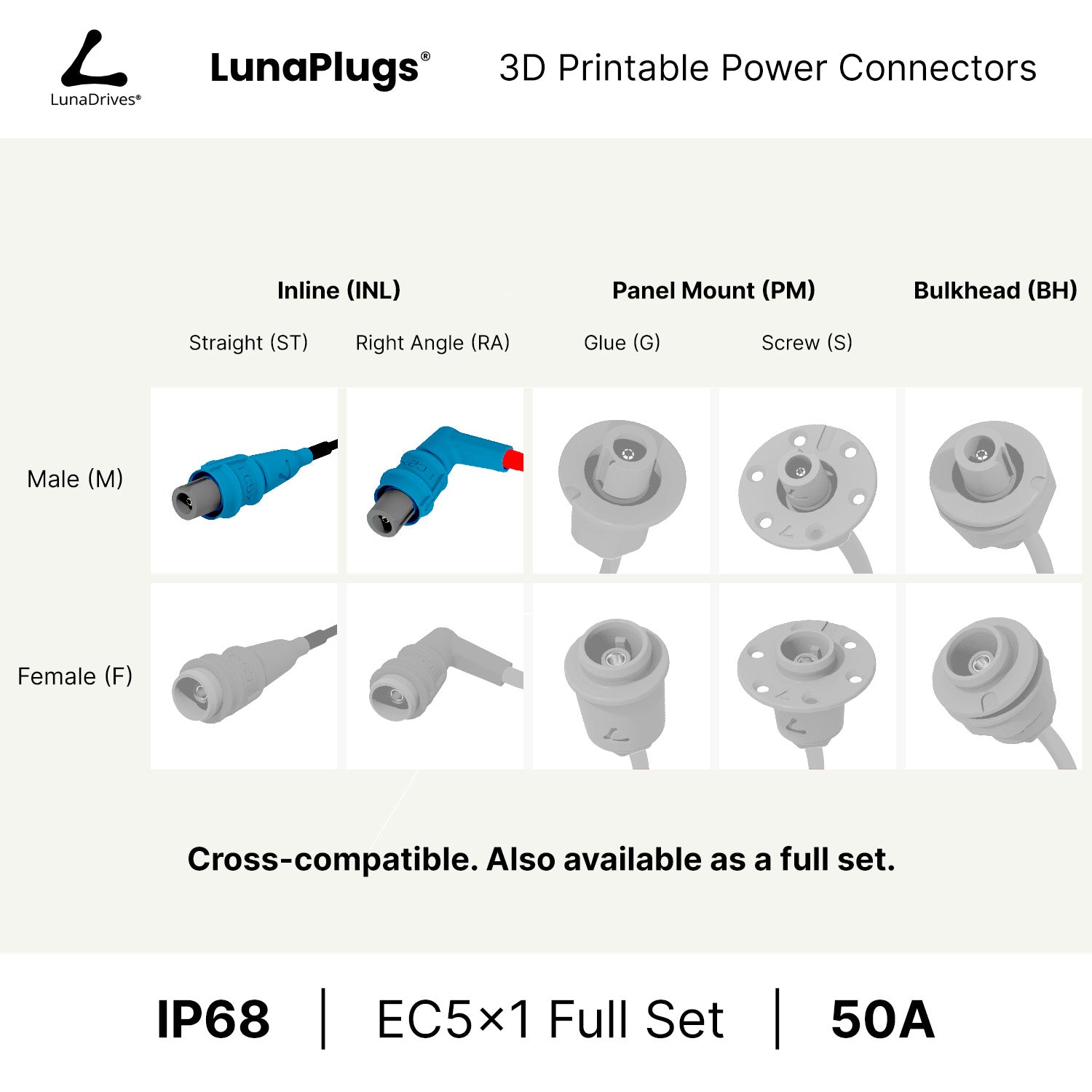

Compatible Connectors

FAQs

What do I receive when I buy a LunaPlugs® product?

You receive a digital download containing STL files for 3D printing, STEP reference files, and accompanying documentation (assembly guide, materials guide, technical data sheets). No physical hardware is included unless specifically stated.

Can I use LunaPlugs® products commercially?

Yes, but only with a valid Commercial Use License. A standard product purchase includes a Personal Use License. Commercial licenses are available as annual or startup-friendly monthly subscriptions.

What materials should I use to print LunaPlugs®?

We recommend UL94-V0 flame-retardant materials such as PETG, ASA, or Nylon. Material choice, print quality, and environmental conditions will affect performance. See our Materials Guide and Technical Data Sheets for more details.

What are the electrical ratings of LunaPlugs®?

Performance depends on material, print quality, and assembly. As a design guide:

  • EC5: 50 A continuous, 100 A bursts ≤10s
  • EC8: 100 A continuous, 200 A bursts ≤10s

Supplier reference ratings may differ. Always validate performance in your own system.

Are LunaPlugs® certified connectors?

No. LunaPlugs® E-series are experimental-level products. They are not certified for safety-critical, medical, aviation, or
automotive applications. Always carry out your own risk assessment before use.
